S-Type Extended Hub

S-EH-Type Clutches

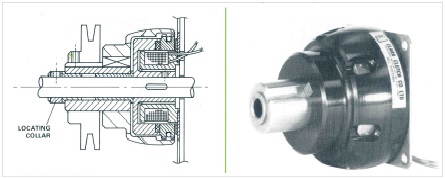

This Extended hub “S” type Clutch is designed to allow the fitment of a pulley or sprocket and intended for use where a support already exists for the coil assembly, for example where a shaft emerges from a sideframe or support. This would ideally be machined with suitable registration to suit either of those provided on the Clutch itself. It is paramount that the Clutch is mounted concentrically with the shaft passing through it.

Sizes A B C D
175 50 52.5 9 20 S175EH
250 72 80 14 28 S250EH
400 114 97 19 34 S400EH
600 152 Call With Requirements S600EH
800 203 Call With Requirements S800EH
