F.S. Failsafe Brakes
Our range of F.S. Failsafe Brakes comprises three models of spring-applied Failsafe Brakes.

When de-energised springs force a rotor plate against friction linings to bring a through shaft to rest. The setting of air gap and measurement of wear can be achieved without removing the brake from the shaft. The outer shell allows initial setting up and measurement of wear to be carried out in 0.1 mm increments.

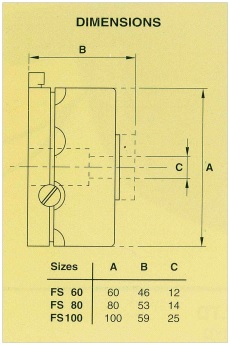

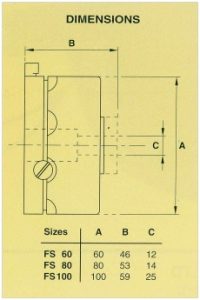

Dimensions & Static Torque Ratings
		Sizes A B C Torque FS 60 60 46 12 2 Nm FS60 FS 80 80 53 14 5.5 Nm FS80 FS 100 100 59 25 17.5 Nm FS100
